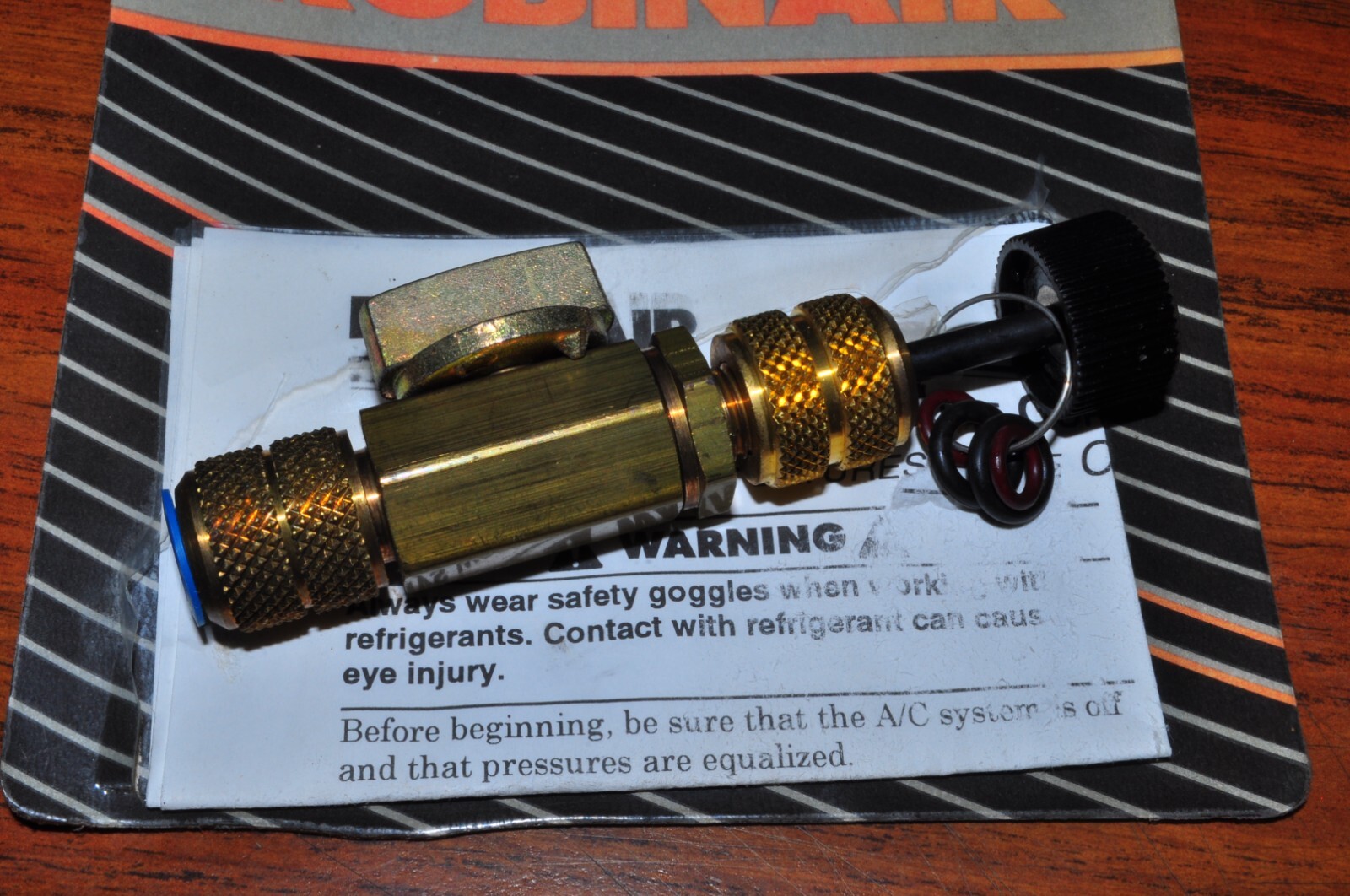

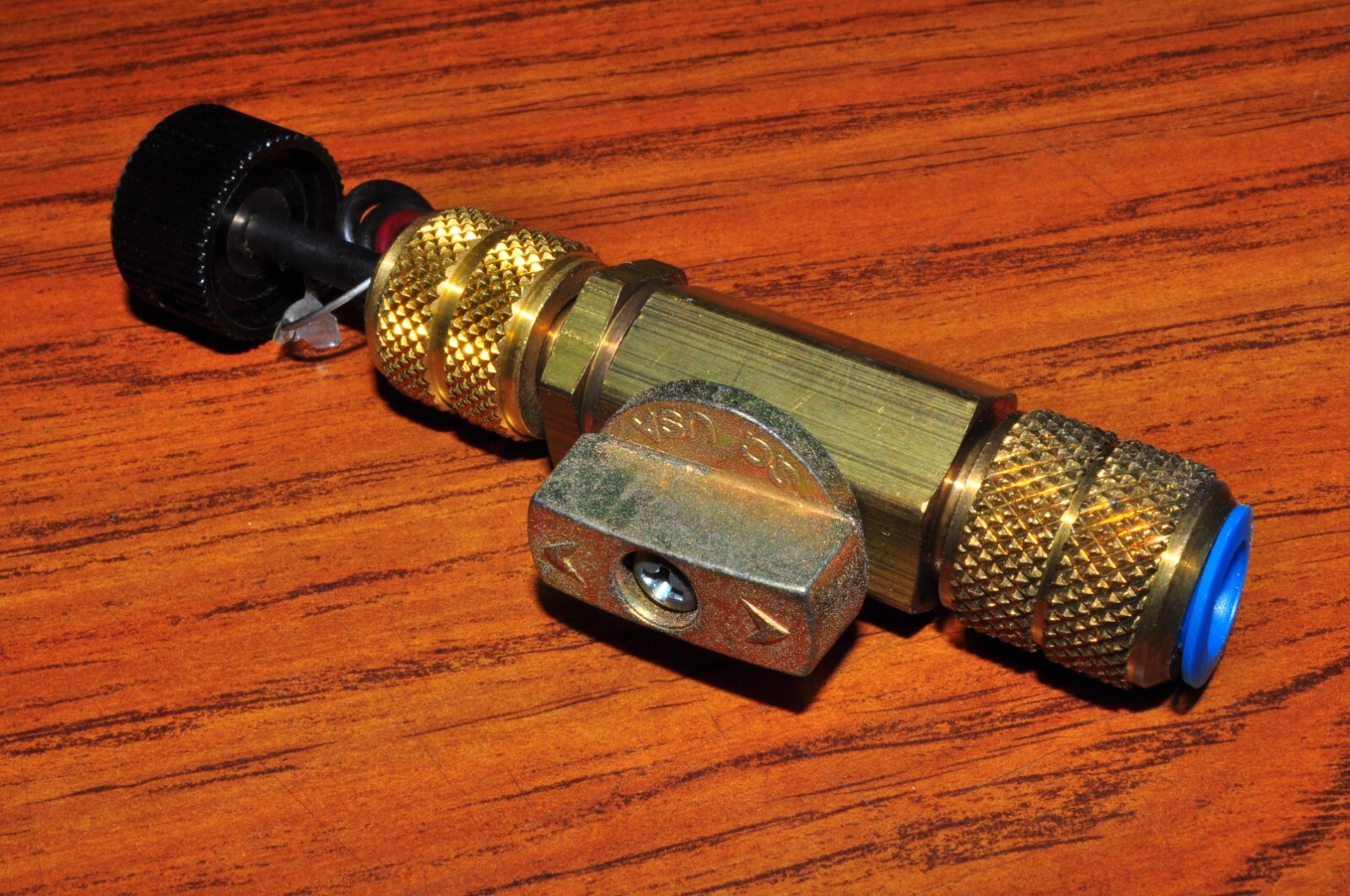

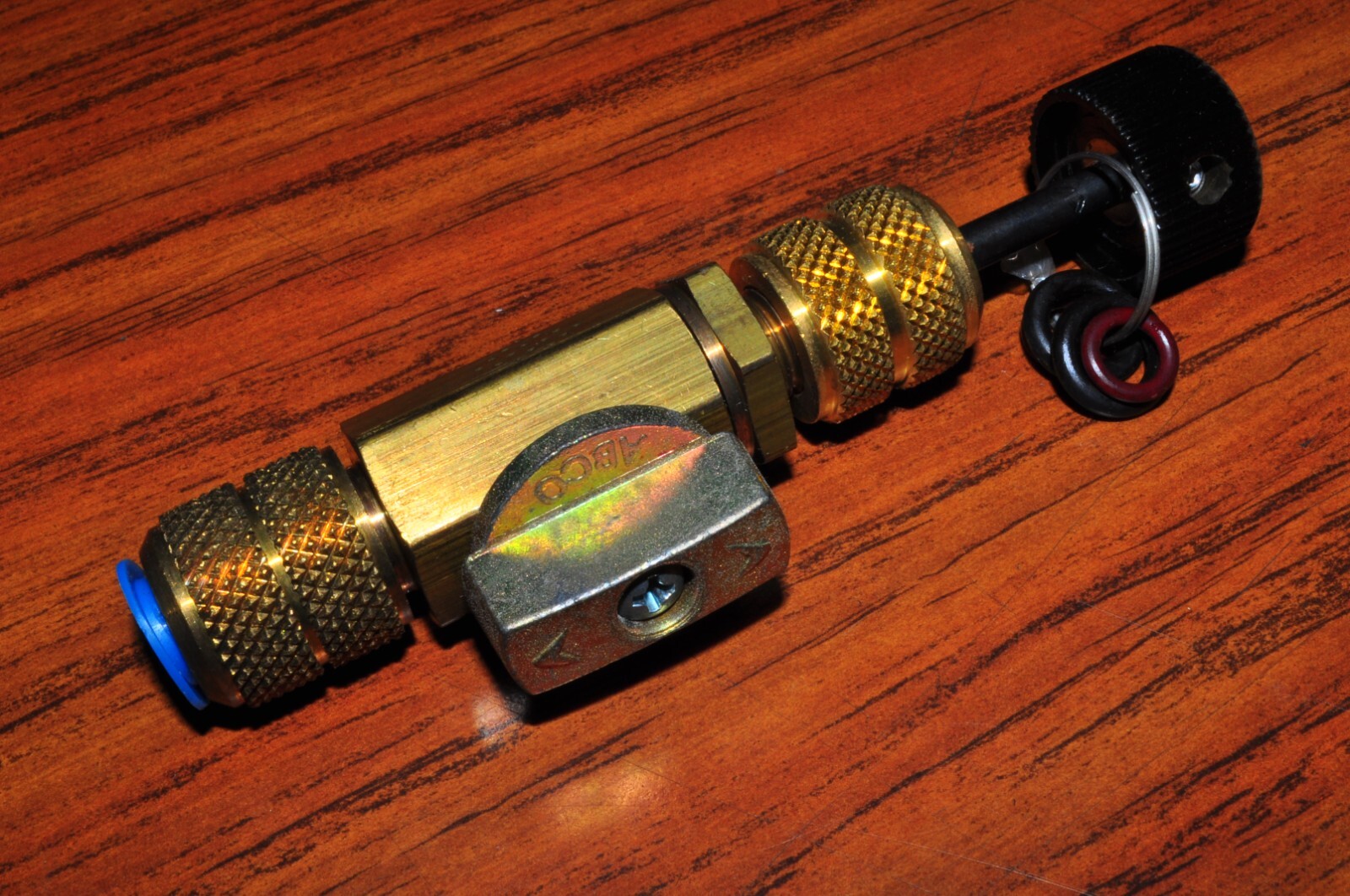

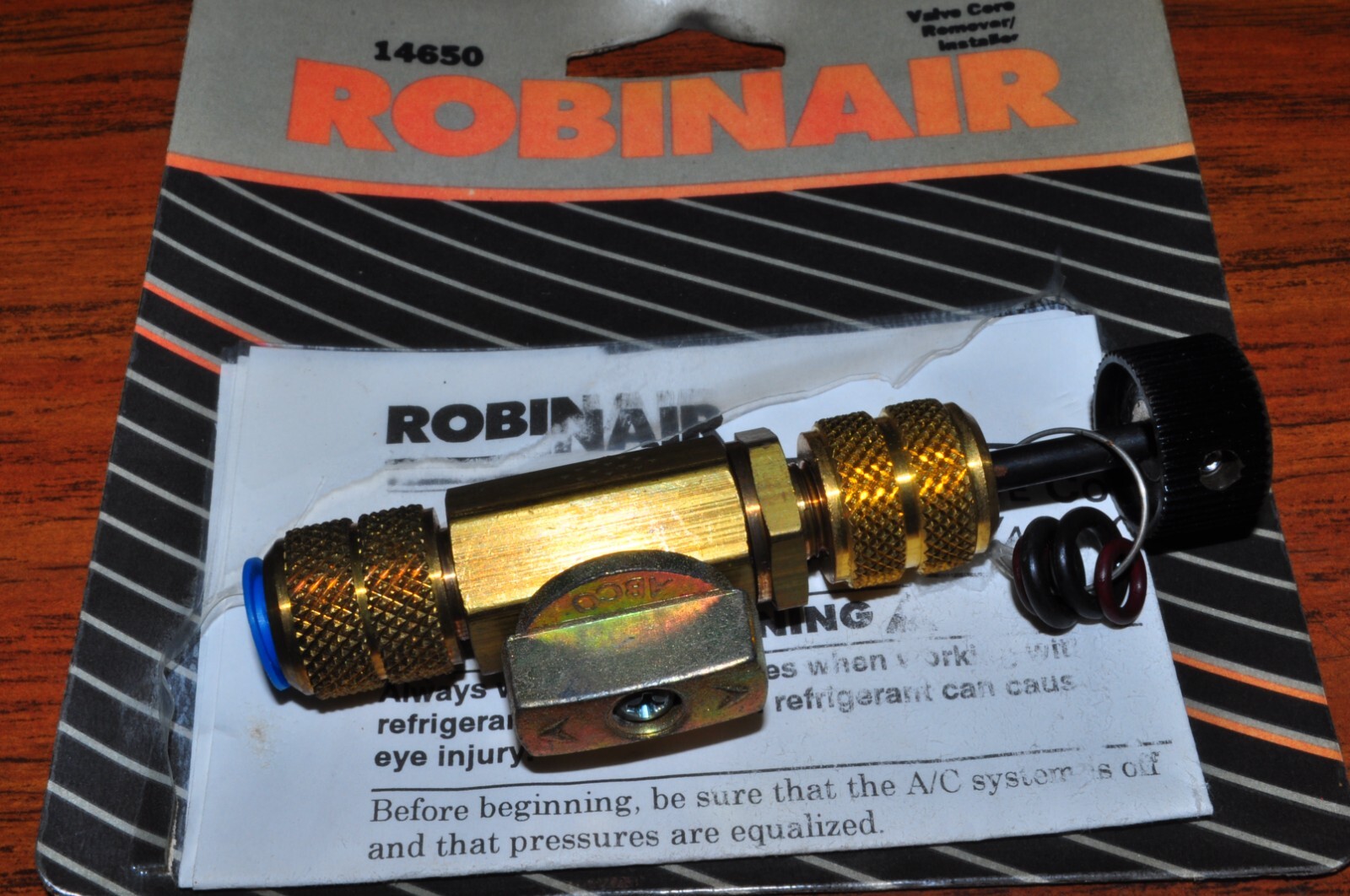

Robinair 14650 ACESS VALVE CORE REMOVER REPLACER USA
Detail description;
1. Install the 14650 tool on the acess valve by finger tightening the female flare nut.
2. Before continuing ,open the shut off valve by turning it completely to the left
3. Advance the tool shaft fully. then rotate to engage the valve core,
Apply slight forward pressure, Turn the shaft counterclockwise until the core is removed,
You will feel the shaft engage the valve core
4. Retract the tool shaft completely and close the shuft-off valve by turning it completely to the right
5. Unscrew the top coupling and remove the valve core , Push in the shaft to remove the valve core.
To service the A/C system, attach a charging hose to the port and open the shaft vlave,
Replace a new core and reverse the procedure
6..Extra seals are supplied with the tool for use in the female coupler unit,
